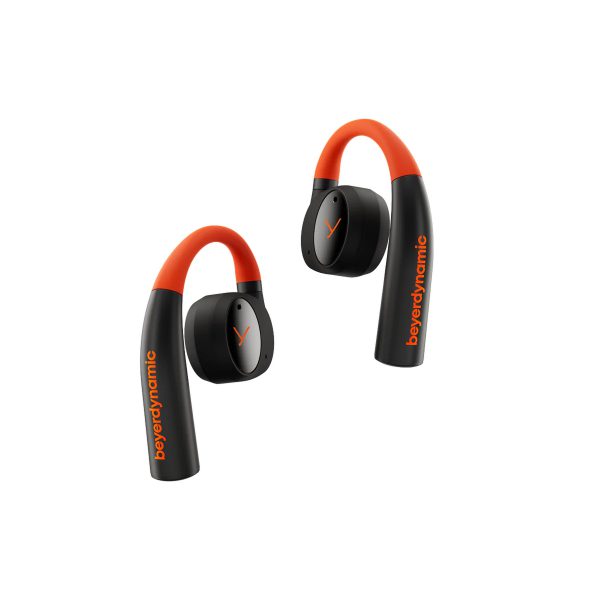

德國 Beyerdynamic - VERIO 200 真無線開放式耳機 | 支援 aptX Adaptive Lossless | 高達8小時耳機續航 | IP54級防水防塵 $1,999
Back to products
Next product
英國 iFi - ZEN One Studio 專業桌上解碼器 | Type-C, 同軸輸入 | 支援最高DSD256, 32Bit/384kHz | MQA Full Decoder | XLR 3-pin, 4.4全平衡線路輸出 | 同軸輸出 | 藍牙接收器 $2,899
ifiaudio

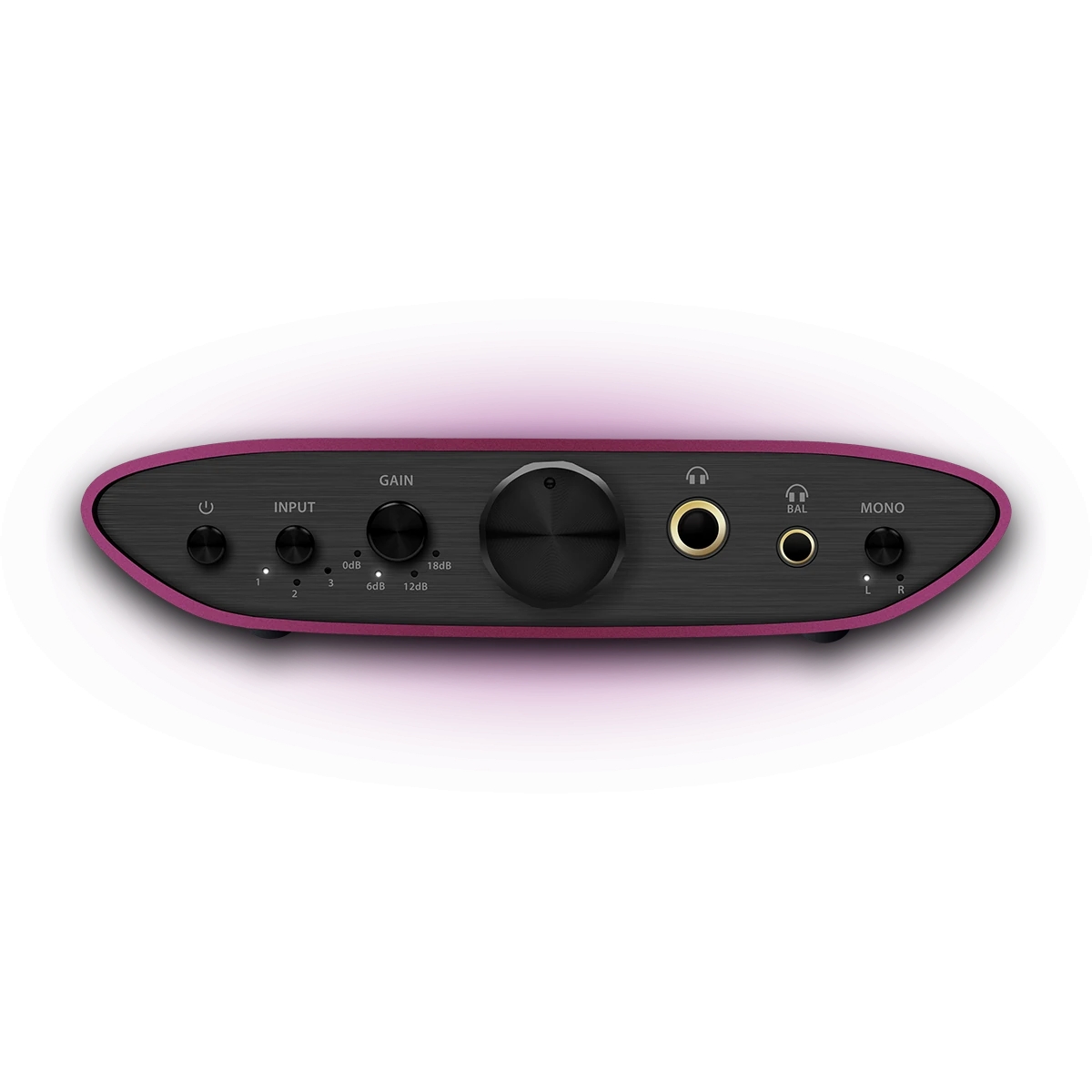

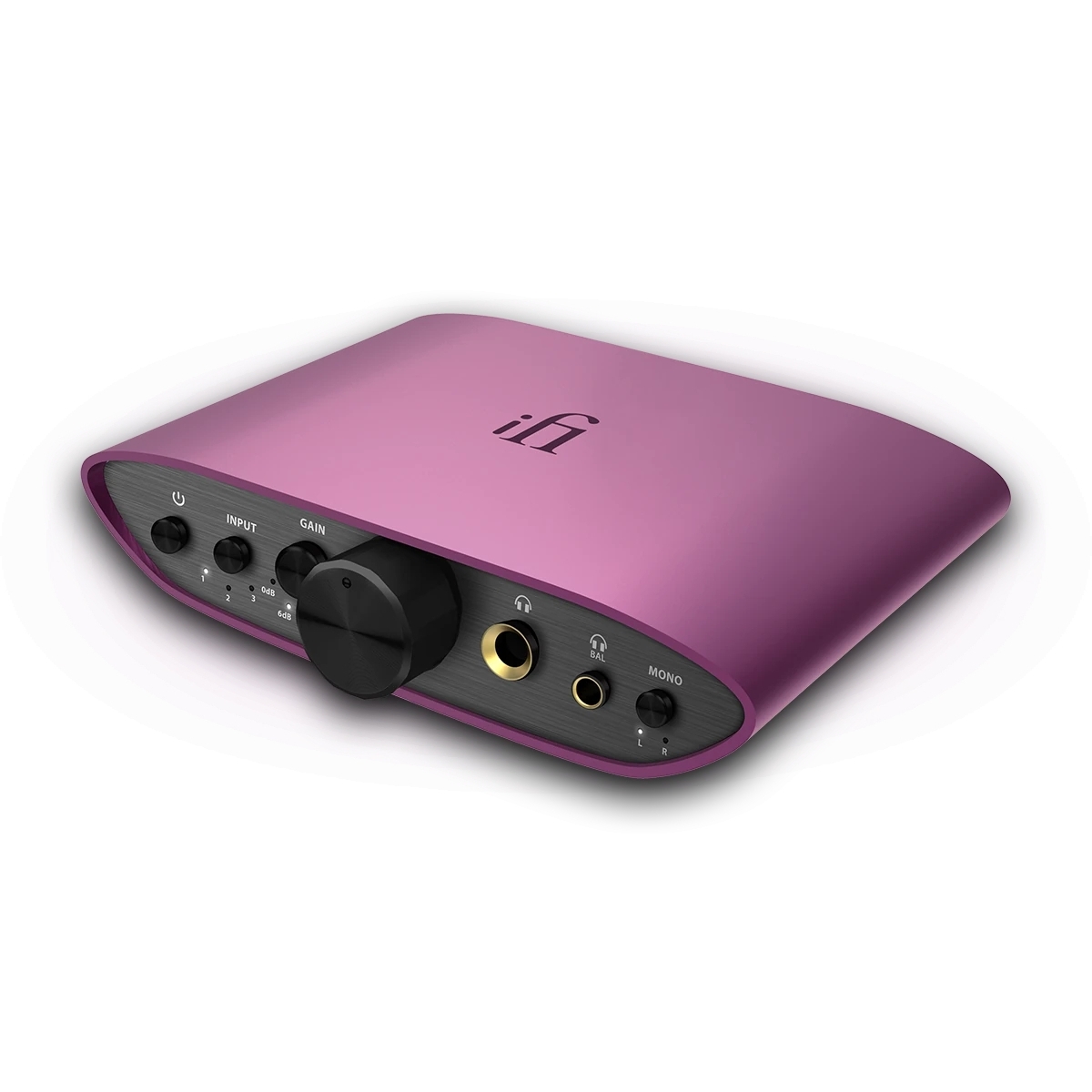

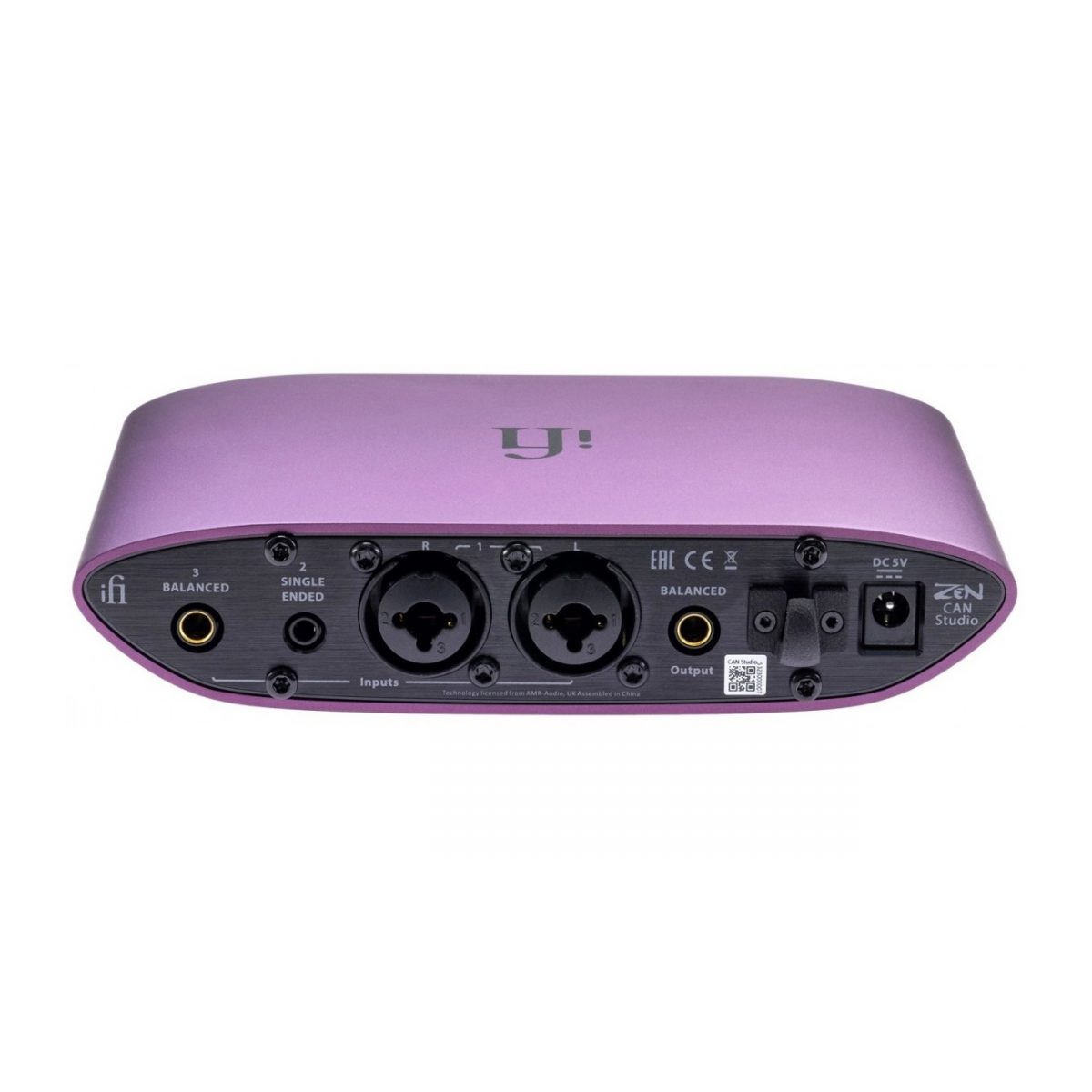

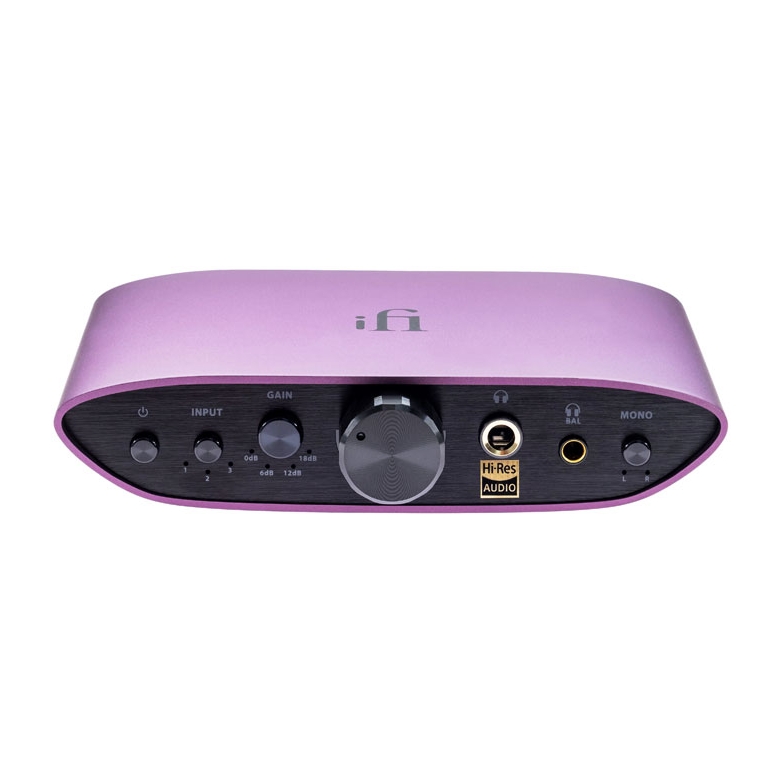

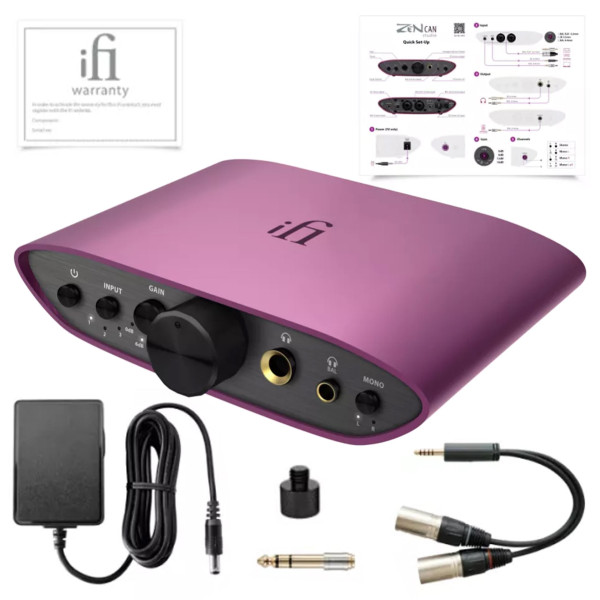

英國 iFi – ZEN CAN Studio 專業級全平衡耳擴 | 4.4, 6.3耳機輸出 | 4級增益 | XLR 3-pin x2, 6.3 TS x2, 4.4, 3.5 立體聲輸入 | MONO 單聲道輸出模式(可切換)

$2,099

Input 4.4mm
3.5mm
XLR/6.3mm
6.3mm pinout		 4.0Vrms (nom.) @ 0dBFS, 24kΩ balanced
1.0Vrms (nom.) @ 0dBFS, 1MΩ UnBAL
4.0Vrms (nom.) @ 0dBFS, 24kΩ balanced
TRS: +, -, Gnd; compatible with TS: +, Gnd Separate left and right connectors
Max. Input 4.4mm
3.5mm
XLR
6.3mm		 7.4V RMS
1.92V RMS
7.4V RMS
7.4Vrms balanced/3.8Vrms UnBAL
Max Output Balanced >15.2V/385 mW (@ 600Ω)
>11.0V/1890 mW (@ 64Ω)
UnBAL >7.6V/196 mW (@ 300Ω)
>4.0V/1000 mW (@ 16Ω)
Output Impedance Balanced
UnBAL
Line		 <2Ω
<1Ω
<200Ω
THD + N Balanced
UnBAL		 <0.006% (@360 mW/2.4V 16Ω)
<0.005% (@ 100 mW/1.27V 16Ω)
SNR Balanced
UnBAL		 >122dBA (@7.3V)
>120dBA (@ 1.9V)
Gain OdB, 6dB, 12dB and 18dB
Frequency Response 10Hz-200kHz (±0.03dB)
Power supply requirement DC 5V/2.4A (centre +ve)
Power consumption No Signal ~5W/Max Signal ~13W
Dimensions 158×121 x 35 mm (6.2″ x 4.8″ x 1.4″)
Net weight 530g (1.17 lbs)
Limited Warranty 12 months



In stock

Add to Wishlist
Compare
SKU: IFI-ZENCAN-STUDIO Categories: , , , Tags: , , , , , , , , , , , , , , ,
Description

英國 iFi

ZEN CAN Studio

專業級全平衡耳擴 | 4.4, 6.3耳機輸出 | 4級增益 | XLR 3-pin x2, 6.3 TRS x2, 4.4, 3.5 立體聲輸入 | MONO 單聲道輸出模式(可切換)

Additional information
品牌

iFi audio
輸入

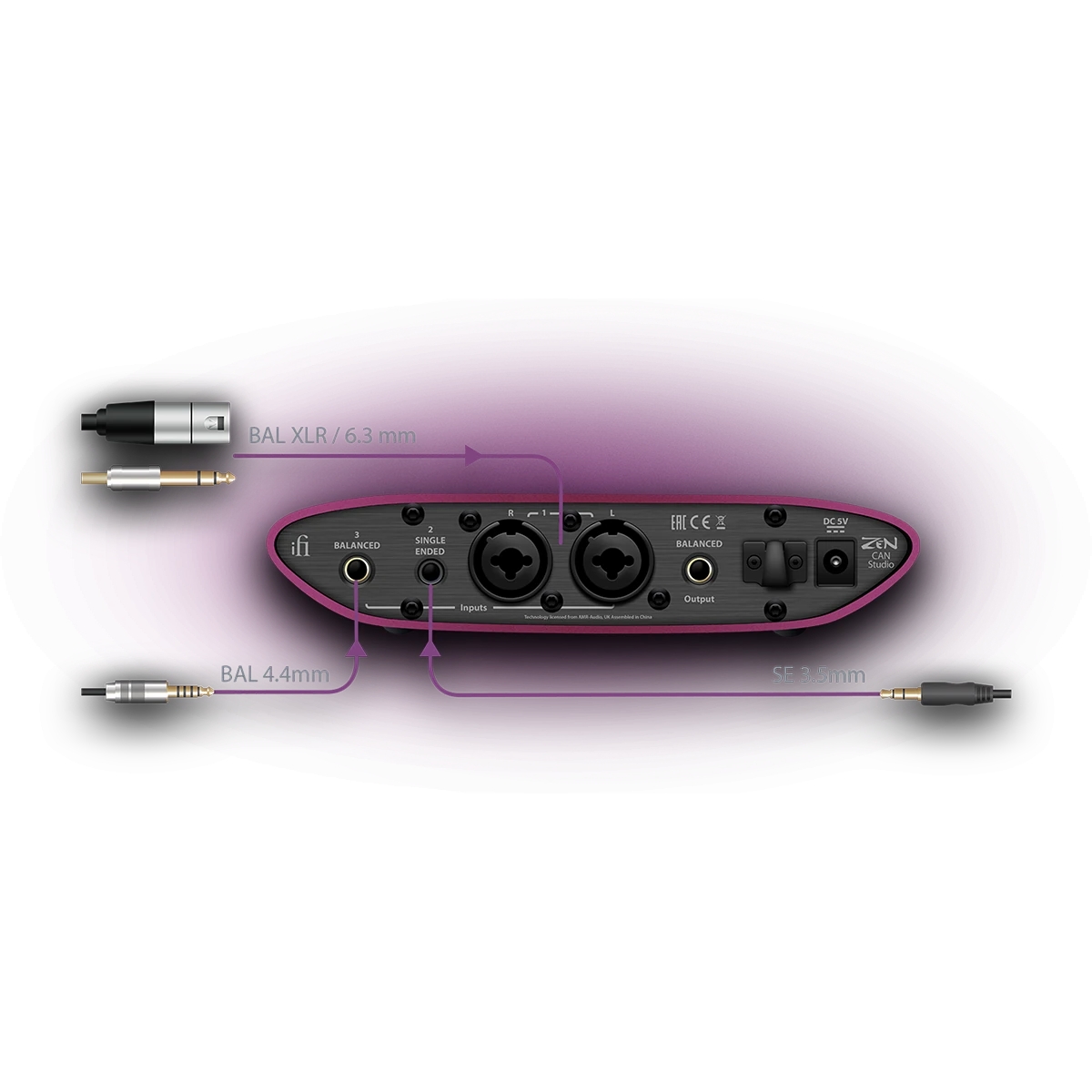

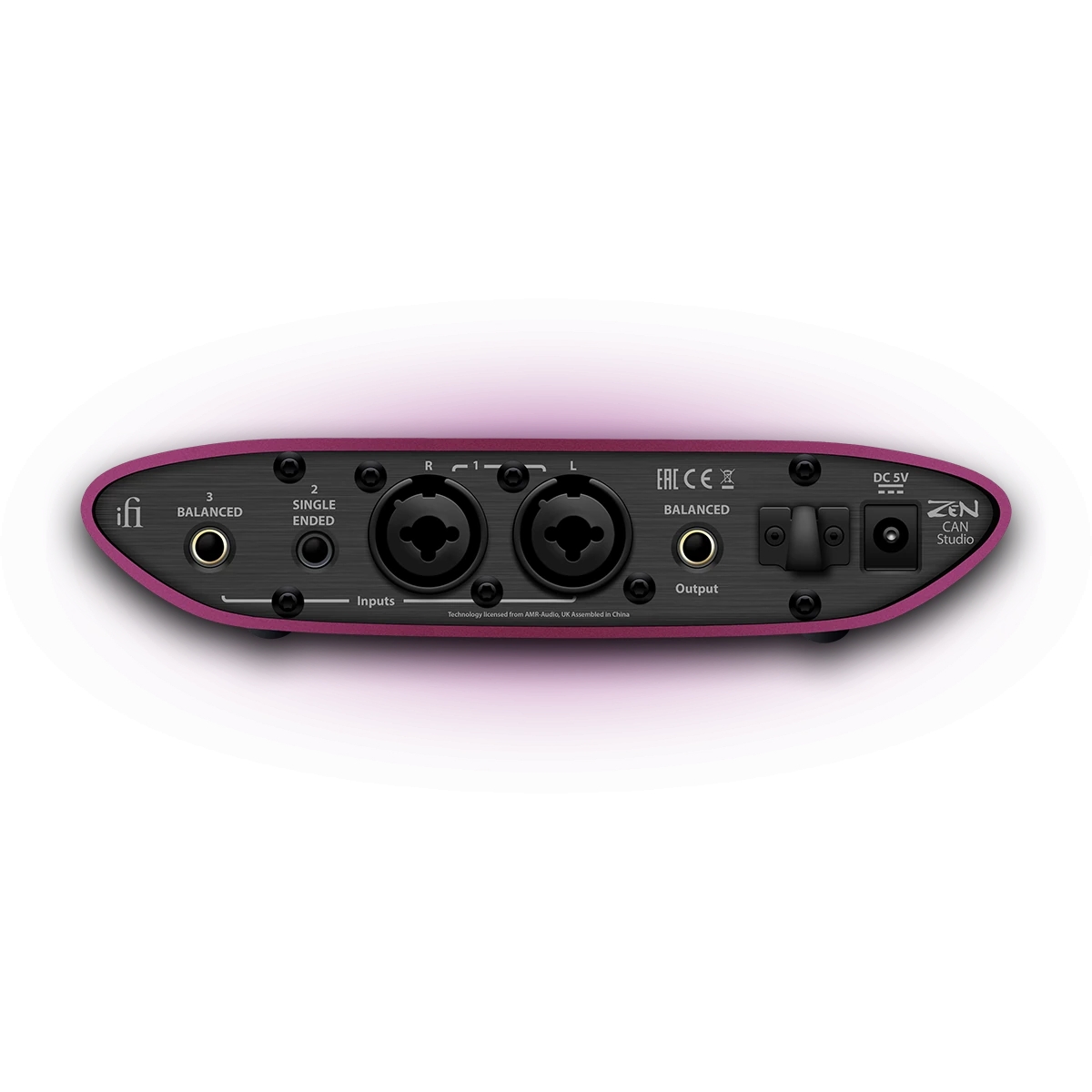

3.5mm, 2x 6.3mm TRS, 4.4mm 平衡 (Female), XLR 3-pin (Female)
輸出

4.4mm 平衡, 6.3mm, 4.4mm 平衡 Pre-out
連接

有線
